 All About Z Bar Hanging System Article

Z bar bracket is a secure hanging solution, designed to hang anything from small lightweight to heavy over-sized objects. These are most commonly used for a wide range of commercial and residential applications. Ranging from re-organizing space to mounting wall displays such as picture frames or shelving. Perfect for transforming work-space. Z bars can be used in pairs or individually. For instance, one cleat mounted to the wall and a matching edge cut straight into the object. The interlocking design of the two cleats helps to temporarily lock the frame in a secure position.


SUMMARY

Metal vs Wooden French Cleats
How to hang? (Step-by-Step Instructions)
Applications
How to order?
French Cleats are available in two types of materials, such as Metal and Wood. The installation takes a few simple steps. Our goal is to have one cleat attached to the picture or an object. While the other piece is attached to the wall. Here we will explore common application and use case scenarios Locate, Qty, Price, and Order


  Metal vs Wooden French Cleats

French Cleats are available in two types of materials, such as Metal and Wood. Compared to Wooden Cleats, Metal Cleats are more expensive. From the distance from the wall, the depth of the Metal Cleats are comparably less to Wooden Cleats. Metal Cleats are made from heavy-duty and extruded aluminum. Which makes it an ideal material that is durable and resistant from wrapping. Metal Cleats are preferably used for both indoor and outdoor applications, and it can naturally resist rust. When Mounted to the wall, Metal Cleats are hidden from sight due to its thin nature compared to thick Wooden Cleats. Traditionally, Wooden Cleats are more natural compared to Metal Cleats, and are most commonly used for cabinets or wooden subjects.


Metal

Aluminum Z Bars are available in two types and come with predefined holes. Regular are most commonly used for small-lightweight pictures. While Heavy Duty is used for large and heavy objects. Each Regular Z Bar is 28 mm tall and 1.5 mm depth. When paired Regular can hold under 90 pounds. While each Heavy Duty is 32 mm tall and 3 mm depth. When paired Heavy Duty can hold over 90 pounds. Z Bar hanging systems are known for achieving flush style hanging solutions. These are made from 100 percent extruded aluminum. For easy stud positioning, it comes with multiple 3/16 inch holes every 2 inches. For maximum strength and weight distribution, secure all premade holes with screws. These can be cut to size with a hand saw or using a power saw. For these, the maximum size that we offer is 59 inches.


Benefits: Drawbacks:
  • Lightweight yet sturdy
  • Compatible for indoor and outdoor applications.
  • Comes with predefined holes for installation
  • In side-view, metal cleats are hidden due to 3/16 inch thickness compared to wooden french cleats.
  • Protects against fire and moisture.
  • Can be custom cut into any size.
  • Resistant to rust and corrosion.
  • Resistant to wrapping.
  • Uninstalling will damage the wall or surface.
  • More expensive compared to wooden cleats.
  • Overtime, aluminum oxidizes. Especially when exposed to water, the surface is affected. A layer of aluminum oxide is formed. However, the underlying metal is protected due to the oxide layer that resistant further corrosion.

Wooden

Similar to Aluminum Z Bar, the Wooden Cleats are perfect for large and heavy displays. A strip of wood is cut in 30 to 45 degree angle, which creates a locking mechanism. For Wooden Cleats the maximum size that we offer is 96 inches.

Benefits: Drawbacks:
  • Can with hold a considerable amount of weight.
  • Lightweight yet sturdy
  • Can be custom cut into any size.
  • The downside of wooden cleats is that, for small artwork, the 1/2 inch thickness can be seen in the side-view. While it is less noticeable for large and heavy artwork.
  • Uninstalling will damage the wall or surface.
  • No reference screw holes for installation.
Z Bar Metal and Wood Materials
Two types of materials, such as Metal and Wood.

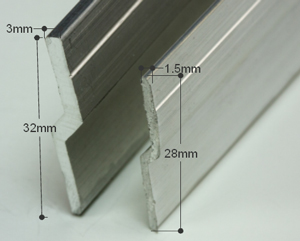

Two sizes of Metal French Cleats
Two types of Aluminum Z Bars.

Heavy Duty Metal French Cleats Size
Heavy Duty Metal French Cleats

 Regular Metal French Cleats Size
Regular Metal French Cleats

 Wooden French Cleats
Wooden Cleats

 How to hang? (Step-by-Step Instructions)

The installation takes a few simple steps. Our goal is to have one cleat attached to the picture or an object. While the other piece is attached to the wall. Brackets can either be used vertically or horizontally with considerations. Z Bars are secured with screws. The interlocking mechanism allows the object to lock into position.

To determine the length of the Z bar, it can be the length of the object or it can be slightly shorter than the object, this allows space to adjust.

Step 1: Setup your Z bar layout

With a pencil, mark a reference line on the wall. Use a ruler, or if you have a laser level, use it to draw a straight line along the wall. Either mark from ceiling downwards or floor upwards to create the reference point. When installed the brackets will be hidden, so it does not matter where it is drilled; thus the cleats can be screwed into the wall separately from the frame. It is important to attach the Z bars in the right direction. The flat side is attached to the wall with a 45 degree angle on one end facing upwards. The other Z bar is attached to the picture frame being clipped upside down. Creating a slide/locking effect.

Step 2: Mount the Z bar to the wall

For metal, follow reference screw holes. For wooden, based on the length of the bar mark screw holes across the surface.

Step 3: Mount the other Z bar to the frame

Mark a reference line and attach the other Z bar to the back of the frame. Remember the flat side is attached to the frame and the shape is installed upside down.

Step 4: Slip into position

Finally, place the frame slightly above the wall mount, and slide the frame into position.

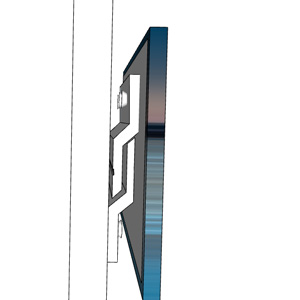

 How to mount metal Z Bar diagram
Metal Z Bar, hanging direction diagram.

 Metal Cleaats with reference screw holes
Metal reference screw holes.


 Wood Cleaats Mounting Diagram
Wooden Cleats, hanging diagram.


  Applications

Hanging system for Cabinet, Signage display, Store fixture, Home fixtures, Head board, Shelving, Hanging storage, Mirror mounting, Panels, Artwork / Picture Frames, Heavy Frames, Di-bond Dry Mount, Plaque Mount and a wide variety of hanging systems.

Common Professional and Industrial usage: contractors, designers, engineers, DIY project, architects, custom home designers, and project managers.

Use Case Scenario:

Scenario 1: Multiple rows of Z bar can be transformed and rearranged into tools wall organizer.

Scenario 2:With the support of the floor or surface, and in cases of non-load bearing scenarios, Z bar can be used vertically. However, it is limited because it can slide when pushed from one side.


Along with the Z Bar Hanging system, there are many unique hanging solutions . For more information about wall-mounting artwork, read our Hanging Wall Art article.


 Where to find and How to order Z Bar Brackets?

  1. Once you land on our webpage. Click on Products. This can be accessed on the main navigation bar.
  2. Slightly hover over Products on the main navigation bar to find the Art Supplies Page. Or either click on the Products button to access all lists of products. Scroll down to find Art Supplies.
  3. Here you will find Products and Sub-category of Products. Under Framing, Click on Framing Hardware.
  4. Here you will find a list of products. For Metal Z Bars Click on French Cleats - Z Bar Bracts. For the Wooden option, click on French Cleat- Wood. Pricing is available under the product list based on the size and type. Z bar can be purchased individually or in packs.
  5. Enter QTY based on the stock size available and Add to Cart.
  6. This will take you to the Shopping Cart Page, double check your order or update. Under Note selection note any specific details or questions regarding your order. Once you are done, Click Checkout to complete your order.

 Pack of Metal French Cleats
Pack of Metal French Cleats

 Alternative Names

Z Bar Hanger, Z-Bar, Z-Bars, Z Bars, Z Bar, Z Bar Hanger, French Cleat, Cleat Hanging System, Hanging System, Picture Hanger, Picture Frame Hanger, Z-Clip, Z-Clips, Z Clip, Z Clips, Panel Hanger, Panel Hangers, Panel Attachment Clip, Panel Attachment Clips, Panel Clip System, Hanger Clip, Hanger Clip, Hanger Clips, Hanger-Clip, Hanger-Clips, Hanging Clip, Hanging Clips, Cleat Hanger Mounting Hardware, Wall Mounting Hardware, Mounting Hardware, Mounting Hardwares, Mounting Clip, Mounting Clips, Wall Mount, Cabinet Hanger, Cabinet Hangers, Wall Hardware, Wall Hardwares, Wall Clip, Wall Clips, Wall Z Clip, Wall Z Clips, Acoustical Z Clip, Acoustical Z Clips, Acoustical Panel Hanger, Acoustical Panel Hangers, Z Rail, Z Rails, Z-Rail, Z-Rails, Aluminum Clip, Aluminum Clips, Aluminum Z Clip, Aluminum Z Clips, Aluminum Z Bracket, Aluminum Z Brackets, Wooden French Cleats, Wooden Hanging System, Wooden Z Clip, Wooden Z Bar, Wooden Z Bar Brackets, Metal Cleats, Metal Z Bar, French Cleats, French Cleat, French Cleat Picture Hanger, Wall Panel Hanger, Wall Panel Hangers, Interlocking Z Clips, Interlocking Hanging System, Heavy Duty Clip, Heavy Duty Clips, Angle Clip, Angle Clips, Interlocking Flush Mount, Interlocking Flush Mount Z Clips.
